Wire Mesh Panel Machine
We can product all kinds of wire mesh panel machines. Here are the details:
The automatic production line of three-dimensional welded wire mesh panel, adopts touching screen control system . The power is pneumatic and step motor. It could insert and oblique cutting wire, flatten mesh and foam board automatically, and the finished product is a steel polystyrene splint. 3D welded wire mesh panel machine has high automatic and production capacity. low lack welding rte, high intensity and even welding point, the mesh sheet is also flat and the production cost is very low.

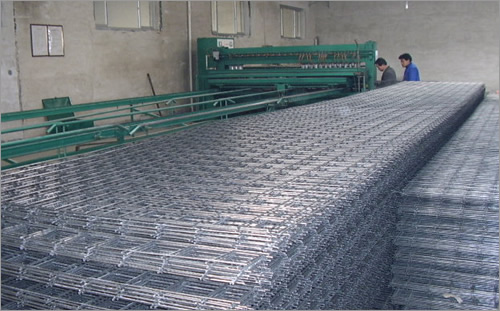

Product by this machine |

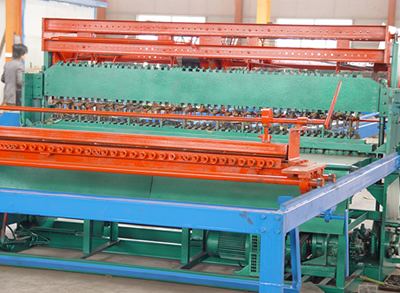

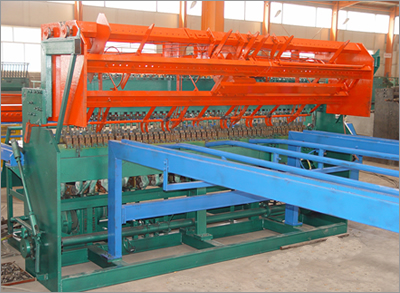

Wire Mesh Panel Machine |
Product by this machine |
Truss wire:
2mm -2.8mm Galvanized.
Mesh Wire Diameter:
2.0mm -2.8mm
Mesh Hole:
50mm*52mm
Panel length:
3000mm or 6000mm
Panel width:
1220mm
EPS Insulation Core:
50-100 mm, Self Extinguishing
Mesh wire material:
Low carbon steel wire.
Spacing between cover Mesh and EPS Core:
10 mm
Overall Thickness of EPS Panel:
Max. 70-120 mm
Diagonal truss:
100 per Sq. Mtr.
Input Supply:
AV380V 50HZ
Air Source Equipment:
3m3/min 0.6MPA
EPS:
Polystyrene Foam Board
Dimension:
13500X1800X1700mm
Machine Weight:
4000Kg
|
|
Specifications
| Rated power | 75KVA | ||
|---|---|---|---|
| input power source | AC380V 50HZ | ||
| Configuration of gas source | 3m3/min 0.6Mpa | ||
| Application range | thickness of core plate | 50mm-100mm | |
| Structure of Joint Wire | Single, double side mesh; spare, dense wire joint | ||
| Manufacturing scale | Standard | Length | 3000mm |
| Width | 1220mm | ||
| Non-standard | Length range ≤4500mm | ||
| material | Iron Wire Diameter available | Cold drawing low carbon steel wire Ø2-Ø2.5mm | |
| Material of core plate | flame-resisting polystyrene foam plate | ||
| Material of filament Plate | Plate mesh in aperture 50mm x 52mm | ||
| Loss welding rate | ≤5% | ||
| Strength of welding | Per dot ≥330N | ||
| Measurement of the machine | Length | 13500mm | |
| Width | 1800mm | ||
| Height | 1700mm | ||
| Weight | 4000kg | ||
