The HESCO barrier or HESCO bastion is a modern gabion used for flood control and military fortification. is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent dike or barrier against blast or small-arms.

Material: It is made of galvanized welded mesh, spring with other fittings, can be filled with sand, earth, cement, stone. Can be used in separate cell or some cells joint together.

Product Informations

• Wire diameter: 4-5mm
• Mesh size: 75x75mm
• Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized according to customer’s requirement
• Geotextile: in heavy duty non-woven polypropylene
• Finish: hot dipped galvanized, galfan coated after welded
• Packing: wrapped with shrink film or packed in pallet.

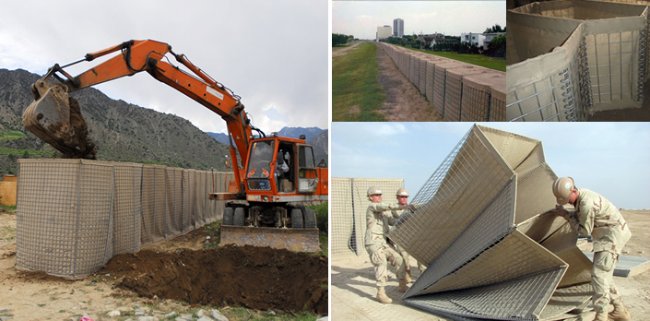

Application

• Perimeter security and defence walls
• Equipment revetments
• explosive and contraband search areas
• Ammunition compounds
• Personnel and material bunkers
• Observation points
• Defensive firing positions
• Highway checkpoints
• Border crossing checkpoints
• Protection existing structures
• High way traffic management
• Flood control
• Water courses
• Emergency flood deployment
• Erosion control
• Retaining walls

Features

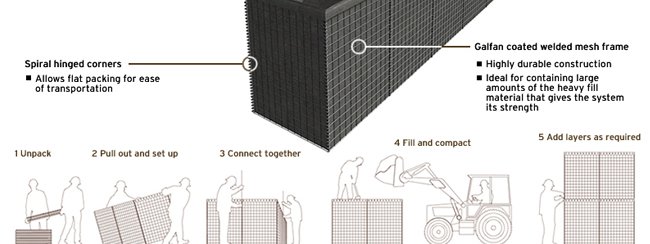

• Easy to handle and install
• High tensile and anti-impact capability
• Long life, regular use
• Can be filled with sand, earth, cement, stone.
