We can product all kinds of fiberglass mesh machines. Here are the details:

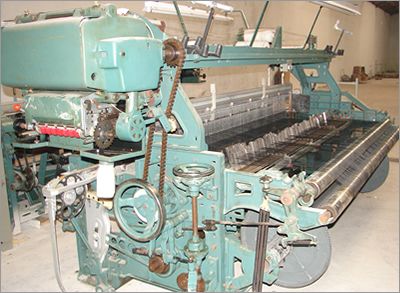

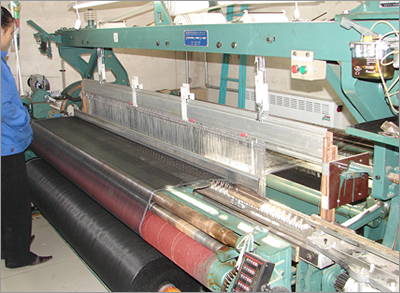

Fiberglass Insect Screening Weaving Machine

This fiberglass screen machine is well received by our custoers due to its excellent property and the quality of the fiberglass screen produced with it.

Major Index:

Electric Motor: 1.5KW FOH-56-6, 2.0KW FOH-58-6, 960rotation/minuts
Max. shaft rotation: 130-200 rotation/minute
Weft yarn choice: mechanical control, six color
Weaving shaft coil distance(mm):1380,1860,2060,2366,2566,2866
Weaving shaft coil diameter(mm): 550, 600
Cloth Full Rolling Diameter(mm): 400
Warp Yarn Feeding: Auto feeding
Weft Yarn Feeding: Auto feeding
Outside Dimension of the machine(mm):
width:3875, 4180, 4380, 4680, 4880, 5180
Depth: 1857; Height:1640
Weight of the Machine: 1700-2800kg (motor not included)

The fiberglass Mesh machine is well received by our customers due to its excellent property and the quality of the fiberglass screen produced with it.

Major Index:

Electric Motor: 1.5KW FOH-56-6, 2.0KW FOH-58-6, 960rotation/minutes
Max. shaft rotation: 130-200 rotation/minute
Weft yarn choice: mechanical control, six color
Weaving shaft coil distance(mm):1380,1860,2060,2366,2566,2866
Weaving shaft coil diameter(mm): 550, 600
Cloth Full Rolling Diameter(mm): 400
Warp Yarn Feeding: Auto feeding
Weft Yarn Feeding: Auto feeding

Outside Dimension of the machine(mm):

width:3875, 4180, 4380, 4680, 4880, 5180 Depth: 1857; Height:1640 Weight of the Machine: 1700-2800kg (motor not included)

Specifications
