Wire Mesh Fence
>
Railway Side Fence
Railway Side Fence
Property:
Our wire mesh grating products enjoy such properties as corrosion resistance, aging resistance, sunshine resistance and weather resistance. Forms of corrosion resistance include electric galvanizing, hot-dipp galvanizing, PVC spraying and PVC coating.
Advantages:
- Fence posts made with concrete pouring, with low cost.
- High strength, good overall stability.
- Color plastic coating layer has a good anti-corrosion and decorative effect.
- The fencing perimeter has a harmony and good outlook.
Main Application:
Fencing of railway, highway railing, the development area fence and field fence.
| Specification of Railway Fences | Spot welded by 4mm diameter quality mild steel wire, finished by hot-dip zinc plating, PVC coating |
|---|---|
| Opening (mm) | 75x150 |
| LxW (mm) | 1620x3000 |
| PVC coating thickness (mm) | 0.7-0.8 |
| Support post (mm) | diameter 48x3x2057 |
| Holding seal (mm) | 210x30x3 |
| Base for fence(mm) | 500x300x300 |

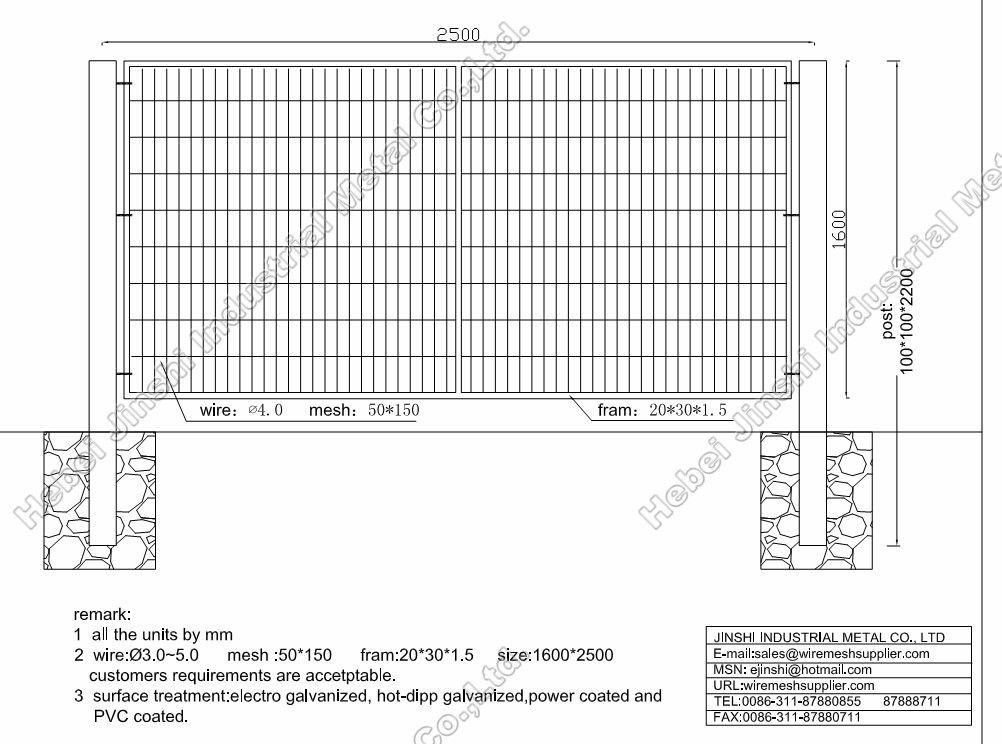

The layout of the railway fence:
