DESCRIPTION:

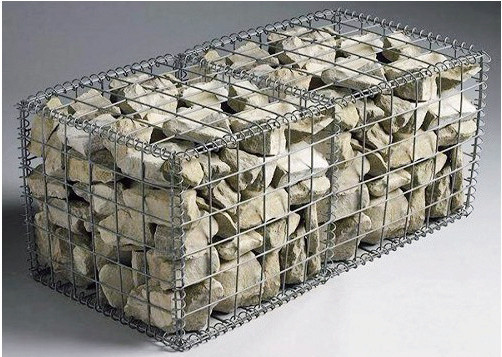

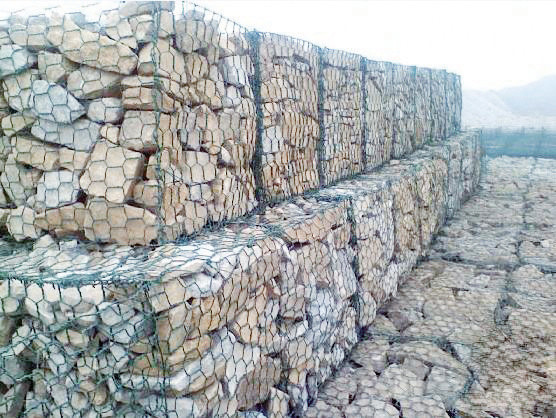

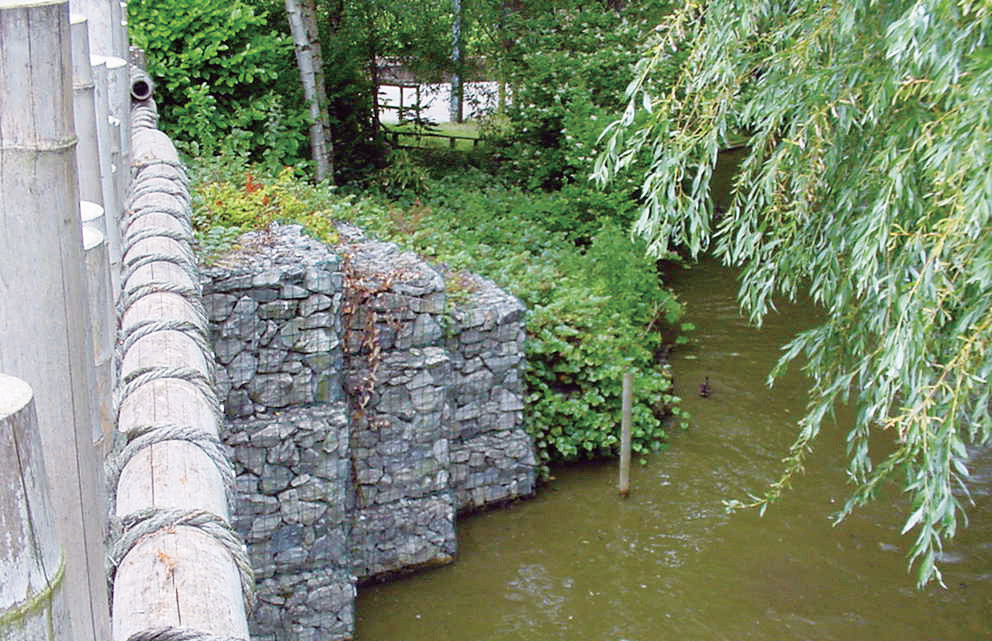

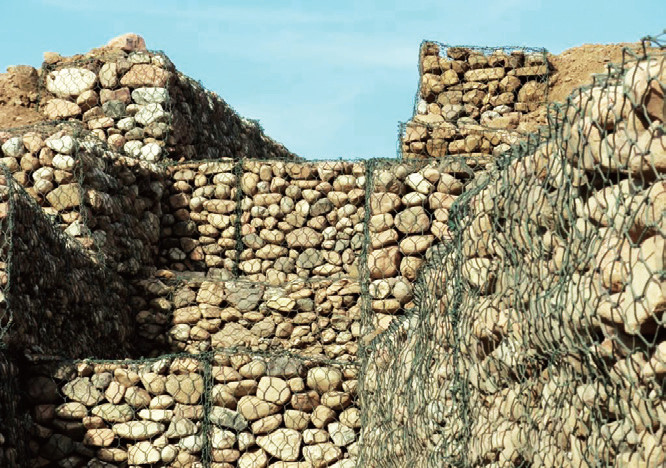

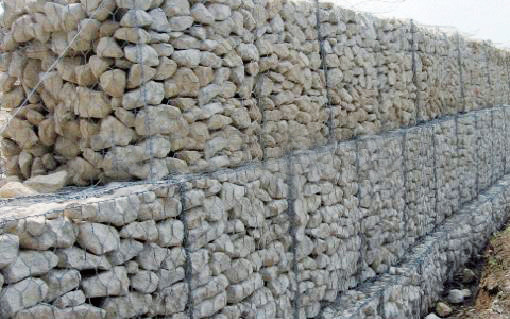

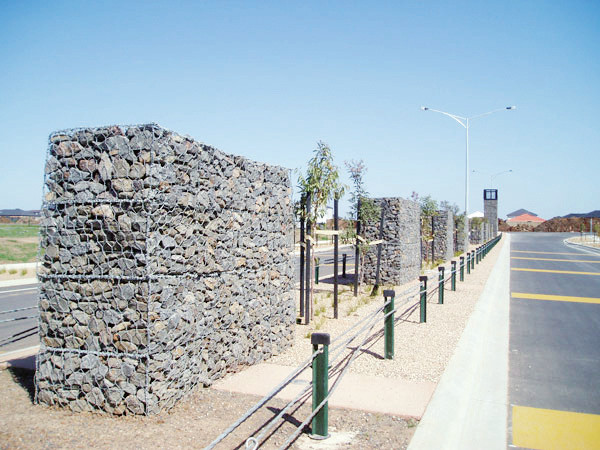

GABIONS ARE STONE FILLED WIRE CAGES,WHICH WERE USED IN LANDSCAPING.AS A RETAINING WALL TO RETAIN OR PROTECT SLOPES FOR EROSION E.G.ALONG RIVER BANKS,THIS NEW GABIONS MADE FROM WELDED MESH PANELS ARE EASY FOR ASSEMBLING AND IS IDEAL USED AS DECORATION WALLS IN THE GARDENS.

ONE COMPARTMENT SET INCLUDING 6PCS MESH SHEET AND 12PCS SPIRALS.ADDITIONAL STRENGTHENING WIRE HOOKS ARE INCLUDED FOR BIG SIZES.MESH SIZES AVAILABLE:50MM,75MM,100MM

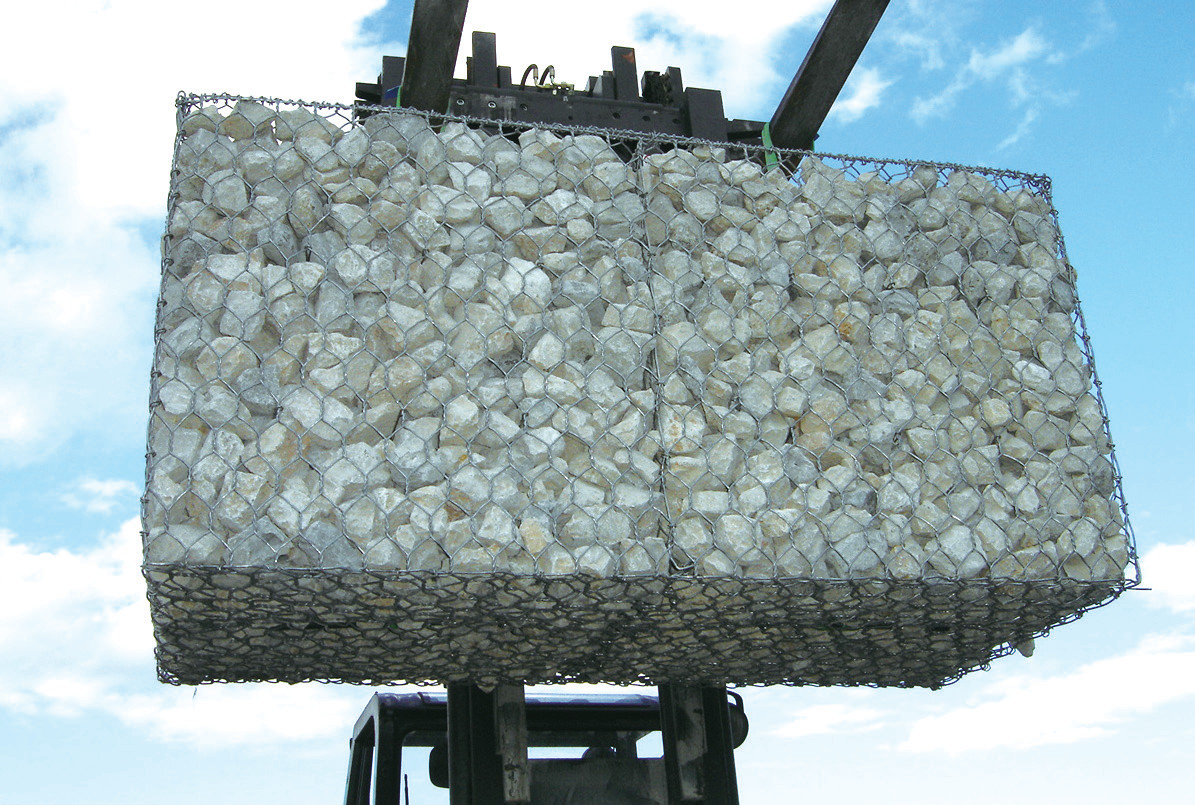

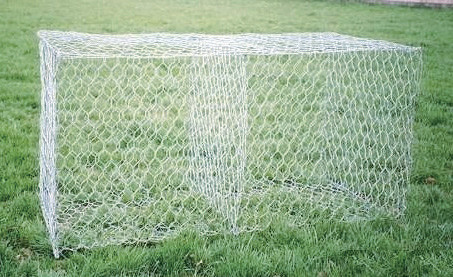

GABION BASKET:

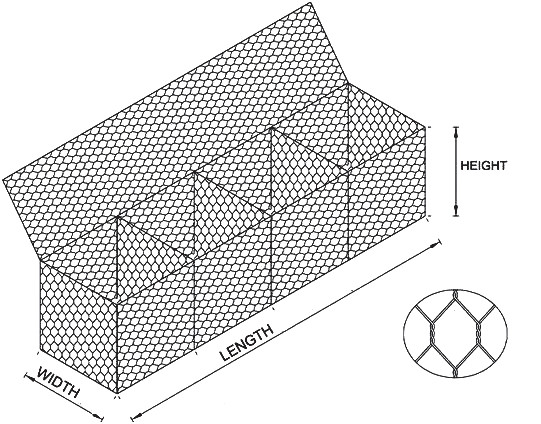

LENGTH(M)	WIDTH(M)	HEIGHT(M)	NO.OF DIAPH.	CAPACITY(M 3 )
2	1	0.3	1	0.6
3	1	0.3	2	0.9
4	1	0.3	3	1.2
2	1	0.5	1	1
3	1	0.5	2	1.5
4	1	0.5	3	2
1.5	1	1	0	1.5
2	1	1	1	2
3	1	1	2	3
4	1	1	3	4

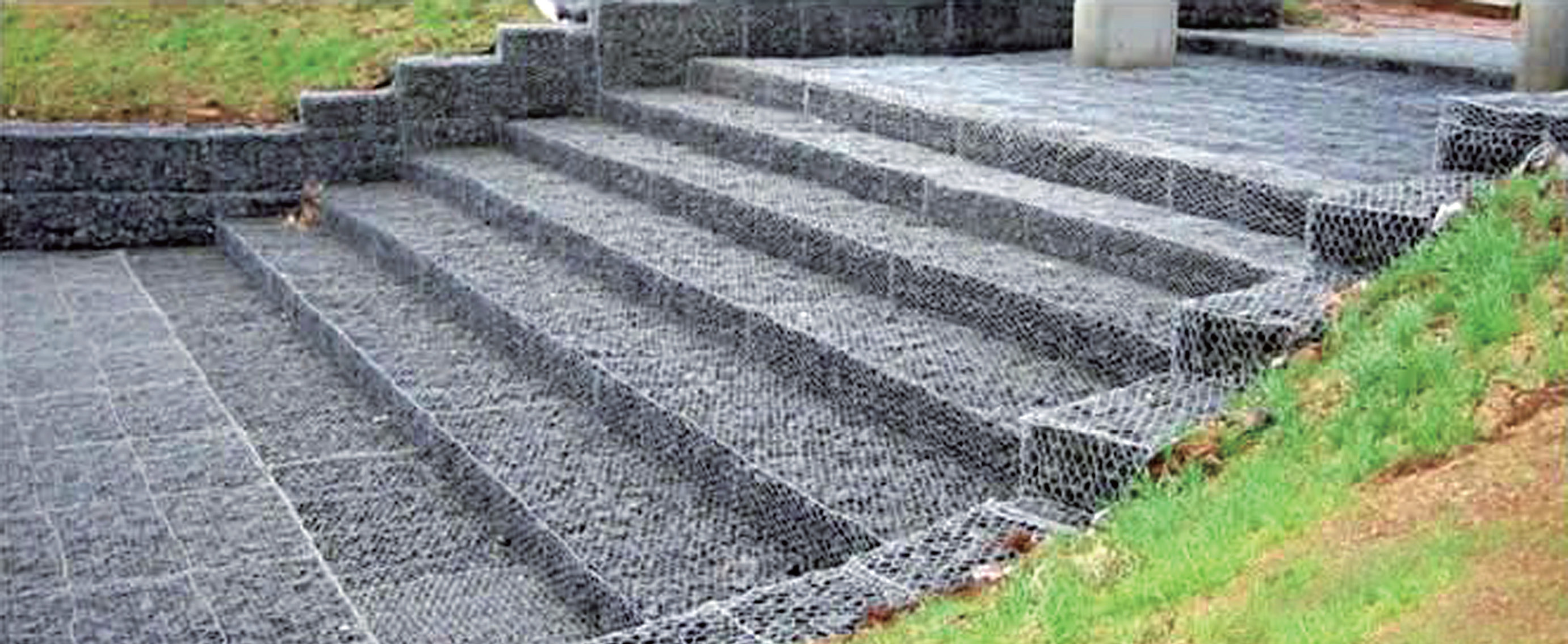

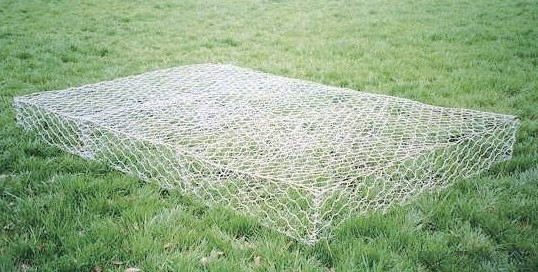

ROCK MATTRESSES:

FINISH: BLACK ANNEALED WIRE,HOT DIPPED GALVANIZED,PLASTIC COATED

MESH: 8×10CM

WIRE DIA:
    GALVANIZED 2.7MM;
    PLASTIC COATED2.5/3.5MM

TYPE AVAILABLE:

IN ROLLS: IN 50M ROLLS WITH WIDTH UPTO 4M

LENGTH(M)	WIDTH(M)	HEIGHT(M)	NO.OF DIAPH.	CAPACITY(M 3 )
3	2	0.25	2	1.5
4	2	0.25	3	2
5	2	0.25	4	2.5
6	2	0.25	5	3
