Barbed Wire Machine
Barbed Wire Machine
The chain link is automatically wound to form rolls when the desired
length is manufactured.
The machine is controlled by PLC automatic controller, so only one
person is needed to operate it.
One side or both sides of the end of net hole is twisted or with burr
in edge.
length is manufactured.
The machine is controlled by PLC automatic controller, so only one
person is needed to operate it.
One side or both sides of the end of net hole is twisted or with burr
in edge.
We can product all kinds of barbed wire machines. Here are the details:
|
|
|
|
|
|

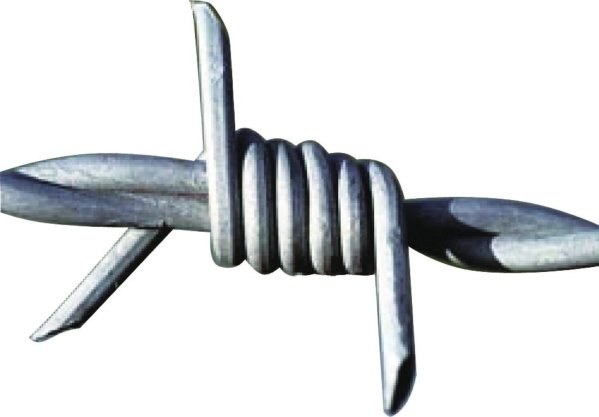

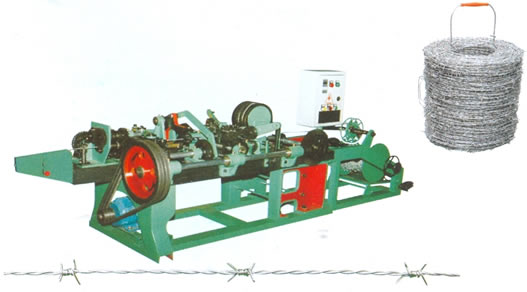

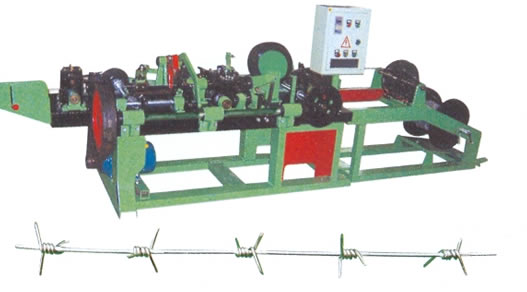

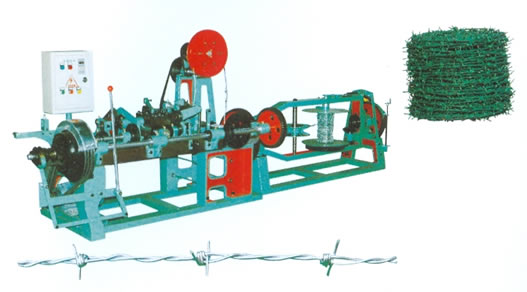

This machine is to produce barbed wire for security fencing, sometimes in combination with the chain link fence. It comes with a wire payoff system.The production speed can go up to 33M per minute. The machine is very user-friendly, safe to operate and easy for maintenance.
Specifications
| Gauge of Strand and Barb in B.W.G. | Approximate Length per Kilo in Meter | |||
|---|---|---|---|---|
| Barbs spacing 3" | Barbs spacing 4" | Barbs spacing 5" | Barbs spacing 6" | |
| 12x12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
| 12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| 12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
| 13x13 | 7.9808 | 8.899 | 9.5721 | 10.7146 |
| 13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| 14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
| 15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
| Diameter, screen wire | 2.5-3mm | Material, screen wire & barbed wire | Low carbon steel wire, thermo-plated with zinc |
|---|---|---|---|
| Diameter, wire for barbs | 2-2.5mm | total weight | 1500 kgs |
| Barb pitch spacing | 3,4,5,6in | power of motor | 3 kw |

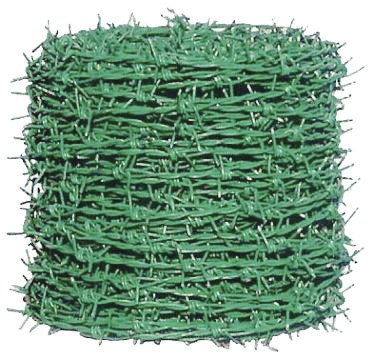

| PVC-plated | - | - | - |
