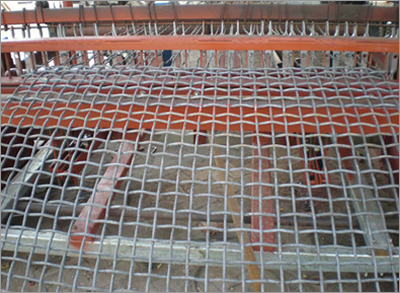

Crimped Wire Mesh Machine
can finish the work from making the wire crimp to
formation of the net automatically.
Breadth of the net is 0.9-2.5m and the diameter of
the wire is 0.4-2.2mm. The size of the mesh is 1×1-
20×20mm 2 .
We can product all kinds of crimped wire mesh machines. Here are the details:

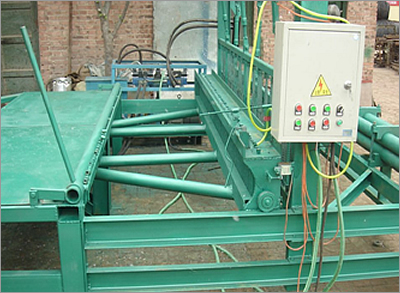

Semi-automatic Crimped Wire Mesh Machine
The series of Semi-automatic crimped wire mesh machine weave crimped wire net of steel, iron, lead and stainless steel wire with big diameter. The net is weaved by the machine after the thick wire is formed to crimp by the rolling machine. Breadth of the net is 0.9-2.5m and the diameter of the wire is 2.0-8.0mm. The size of the mesh is 2×2mm-80×80mm. The structure of the machine is compactness and rational. It performs satisfactorily and runs smoothly.
Breadth of the net produced by each gauge of the machine can be adjusted in a certain extent.

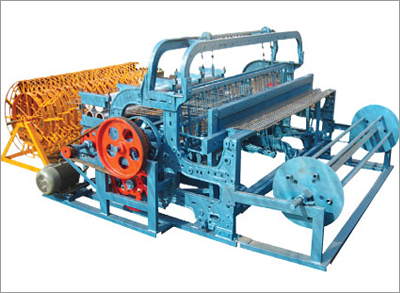

Fully Automatic Crimped Wire Mesh Machine
The series of automatic crimped wire mesh machine can finish the work from making the wire crimp to formation of the net automatically. Breadth of the net is 0.9-2.5m and the diameter of the wire is 0.4-2.2mm. The size of the mesh is 1×1-20×20mm 2 . The weaving speed can reach 53times shuttle /minute.The properties of fast, easy to operate and good performance of the machine are fond by the users.
| WIDTH | MEASUREMENT | POWER | WEIGHT |
|---|---|---|---|
| 1.0m (44") | 2.5X2X1.5 | 0.75 | 800KG |
| 1.2m (52") | 2.8X2X1.5 | 1.1 | 1000KG |
| 1.3m (56") | 3.2X2X1.5 | 1.1 | 1100KG |
| 1.5m (63") | 3.2X2.5X1.7 | 1.5 | 1250KG |
| 1.8m (75") | 4X2.5X1.7 | 1.5 | 1500KG |
| 2.0m (83") | 4.2X3X1.8 | 2.2 | 1800KG |
| 2.3m (50") | 4.5X3X1.8 | 2.2 | 2000KG |
