Welded Mesh Machine
2. width: 914.4-1219.2mm(12〞-48〞)
3. diameter of wire: ￠0.63-￠2mm(BWG25-BWG19)
4. Biggest rolled net size: 120m(400’)
5. Welding speed: 65radia (mesh/minute)
6. Power: 380/220V 50-60Hz 50KWA×4
We can product all kinds of welded mesh machines. Here are the details:

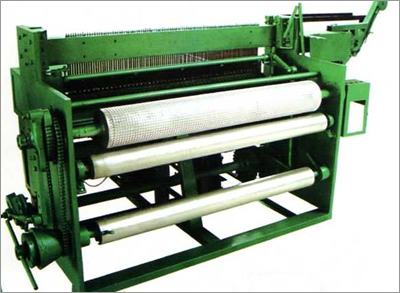

Peculiarity: Box-style support high stability,lower noise,E-Machine in one,straighten & send wire automatically,Used for welded wire mesh 1/4"-1/2".
| Size of mesh (mm) | 6.35-12.7 (1/4"-1/2") |
|---|---|
| Width (mm) | 914.4-1219.2(12"-48") |
| Diameter of wire (mm) | dia.0.45-dia.1.07 (BWG25-BWG19) |
| Biggest rolled net size (m) | 120m (400') |
| Welding speed (mesh/minute) | 75 (radia) |
| Power |
380/220V
50-60HZ 50KWA x 4 |
| Outside size measurement (mm) | 2350 x 1820 x 1700 |

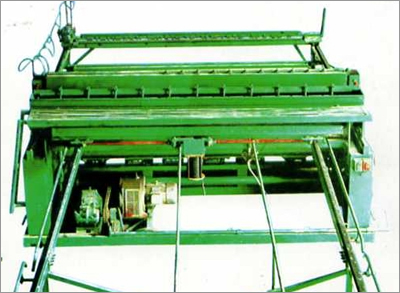

Peculiarity: Box-style support, high stability, lower noise, E-machine in one, straighten and send wire automatically, used for welded wire mesh 1/2" to 4".
| Size of mesh (mm) | 12.7-101.6 (1/2"-4") |
|---|---|
| Width (mm) | 914.4-1219.2(12"-48") |
| Diameter of wire (mm) | dia.0.63-dia.2(BWG25-BWG19) |
| Biggest rolled net size (m) | 120m (400') |
| Welding speed (mesh/minute) | 65 (radia) |
| Power |
380/220V
50-60HZ 50KWA x 4 |
| Outside size measurement (mm) | 2600 x 1700 x 1350 |

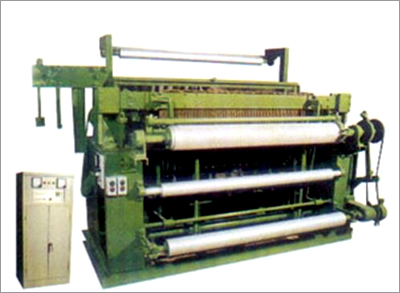

Peculiarity: Shuttle sending weft wire type, sending quicker, lower noise, more stable, save electricity.Used for welding net of big width. Wire diameter from 0.7mm to 1.07mm; mesh 1/4" to 1/2".
| Size of mesh (mm) | 6.35-12.7 (1/4"-1/2") |
|---|---|
| Width (mm) | 1219.2-1828.8(48"-60") |
| Diameter of wire (mm) | dia.0.74-dia.1.07 (BWG22-BWG19) |
| Biggest rolled net size (m) | 120m (400') |
| Welding speed (mesh/minute) | 48 (radia) |
| Power |
380/220V
50-60HZ 50KWA x 6 |
| Outside size measurement (mm) | 3050 x 1900 x 1750 |

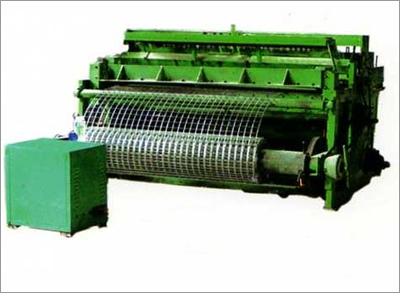

Peculiarity: Box-style support, high stability, lower noise, E-machine in one, straighten and send wire automatically, used for welded wire mesh of big width and wire diameter.
| Size of mesh (mm) | 25.4-152.4 (1"-6") |
|---|---|
| Width (mm) | 1219.2 1524 1828.8(48" 60" 72") |
| Diameter of wire (mm) | dia.1.07-dia.2 (BWG19-BWG14) |
| Biggest rolled net size (m) | 91.4m (300') |
| Welding speed (mesh/minute) | 45 (radia) |
| Power |
380/220V
50-60HZ 50KWA x 6 |
| Outside size measurement (mm) | 3350 x 1800 x 1400 |
