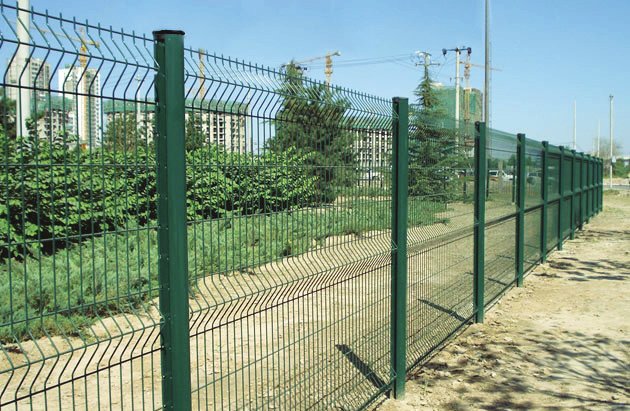

DESCRIPTION:

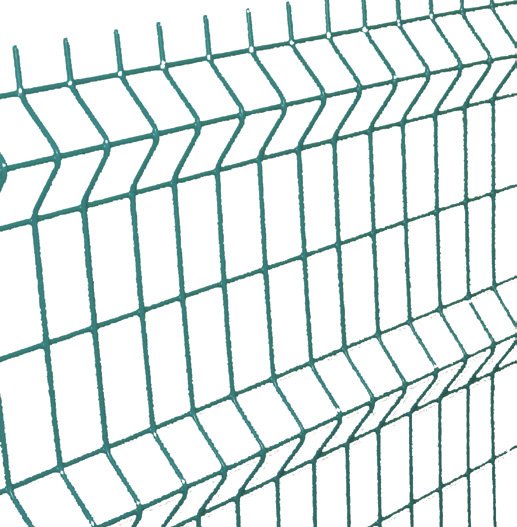

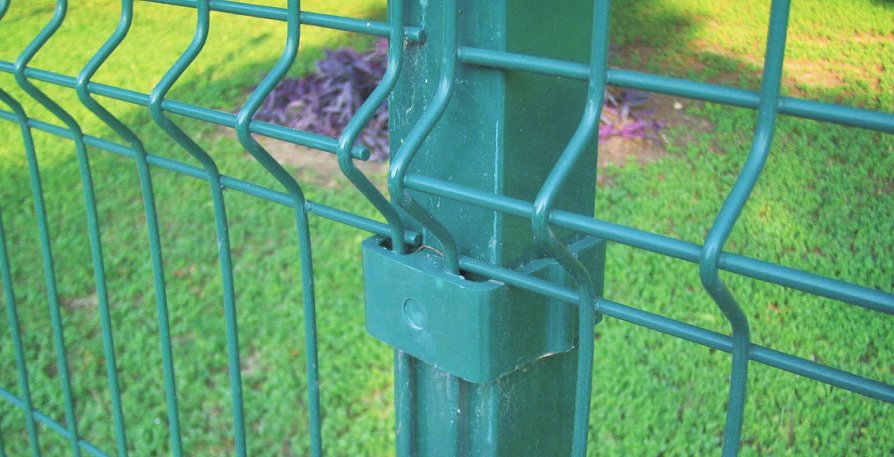

THE PANEL IS REINFORCED WITH “V” FOLDINGS TO INCREASE THE RIGIDITY AND STRENGTH. ALL PANELS HAVE A 30MM BARBED TOP EDGE FOR ANTI-CLIMBING.
- COATING: THE PANELS ARE MADE WITH HOT DIP GALVANIZED WIRE THEN POWDER COATED.
- COLORS: COLOURS ARE AVAILABLE IN GREEN, WHITE, BLACK, OTHERS AVAILABLE ON REQUEST.
SIZES AVAILABLE:
| WIRE MESH PANEL | POST | SURFACE TREATMENT | COLOR | PACKING | REMARK | ||||
|---|---|---|---|---|---|---|---|---|---|
| WIRE DIA | MESH | HEIGHT | LENGTH | FOLDS |
ANTI-STEAL POST 70X100MM
OR SQUARE POST 50X50MM/60X60MM |
||||
| 3MM, 3.5MM, 4MM, 4.5MM, 5MM | 50X200MM | 1.03M | 2.0M OR 2.5M | 2V | 1.33M/PC | HOT DIPPED GALVANIZED, ELECTRO GALVANIZED, PVC COATED, AND POWDER COATED | GREEN, WHITE, BLACK | PALLET | CUSTOM SIZES CAN BE ACCEPTABLE |
| 1.23M | 2V | 1.53M/PC | |||||||
| 1.53M | 3V | 1.83M/PC | |||||||
| 1.83M | 3V | 2.13M/PC | |||||||
| 2.03M | 4V | 2.33M/PC | |||||||

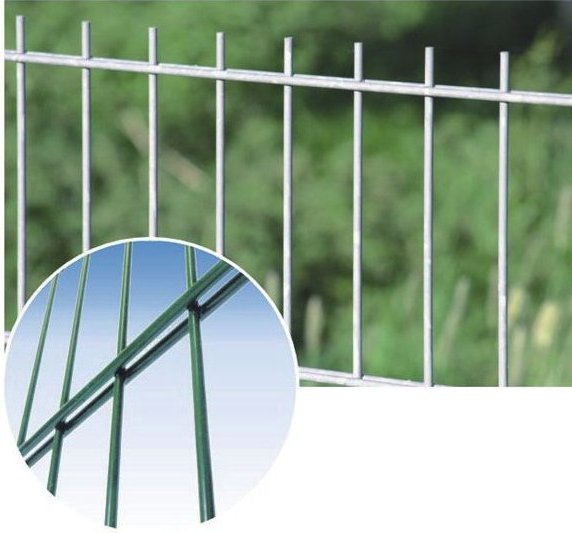

DOUBLE WIRE PANEL
DESCRIPTION:
THE DOUBLE WIRE PANEL IS MANUFACTURED FROM GALVANIZED STEEL WIRE WITH HIGH PROTECTION POWDER COATING OR HOT DIP GALVANIZED AFTER WELDING.WITH ITS STRENGTH BY USING 2 HORIZONTAL WIRES THIS PANEL IS RECOMMENDED FOR USES AS A PROTECTION FOR SCHOOL PRWMISES,AND AS FENCING FOR COMMERCIAL OR ADMINISTRATIVE SITES;OFFICES,WAREHOUSES,SHOPS ETC.
POSTS:
THIS SYSTEM USUALLY CHOOSE SQUARE POST (50×50MM, 60×60MM), RECTANGULAR POST (80×60×2. 5MM, 120×60×3MM) AND PEACH POST WITH THE HIGH STRENGTH AND SO ON. WITH PLASTIC CAPS OR ROOFING RAIN HAT. THE FINISHED SURFACE USUALLY IS GALVANIZED AND POWDER COATING, OR ALTERNATIVELY.
FASTENINGS:
THE PANELS AND POSTS ARE JOINTED TOGETHER WITH BOLTS OR RIVETS, USING THE STEEL FLAT BAR OR SPECIAL STEEL CLAMPS, ALL NUTS ARE SELF-LOCKING. THIS ALSO CAN BE DESIGNED AS THE SPECIAL CLIENTS’ REQUESTS.
SIZE AVAILABLE:
- WIRE: 8/6/8MM AND 6/5/6MM
- MESH: 200×50MM;200×55MM;200×65MM
- HEIGHT: 0.63MM TO 2.33MM
- LENGTH: 2000MM OR 2500MM

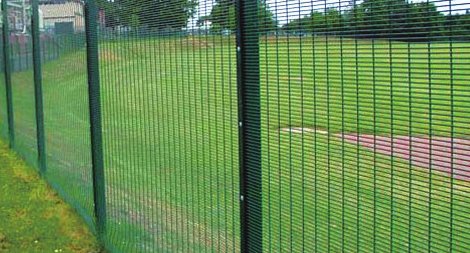

HIGH SECURITY FENCE
PANELS:
THE PANELS HAVE A WIDTH OF 8'-2 1/2" (2500MM) AND ARE AVAILABLE IN HEIGHTS RANGING FROM 4FT TO 8FT (1200 TO 2400MM).THE MESH SIZE IS 1/2"×3" (12.5×76.2MM). THE FORGED WELDED HIGH QUALITY WIRE ASSURES STRENGTH AND RIGIDITY.

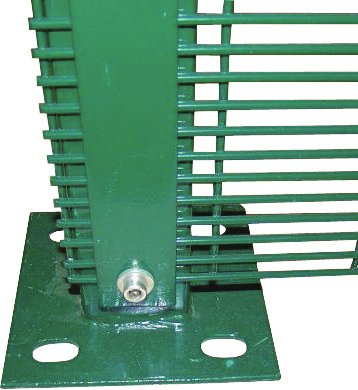

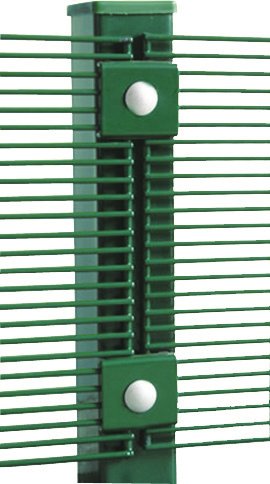

POSTS:
THE PANELS ARE ATTACHED TO TUBULAR HIGH STRENGTH STEEL POSTS
1-1/2"× 2-3/8" OR 1-1/2" × 3", THE PANELS CAN BE ATTACHED TO THE FACE OF THE POSTS OR IN BETWEEN POSTS
BY USE OF THE INCLUDED HIGH STRENGTH ATTACHMENT BRACKETS.
FEATURES:
- PREVENTS CLIMBING
- PREVENTS CUTTING
- PREVENTS DESTRUCTION
USES:
- WALKWAY SECURITY FENCING
- AIRPORT SECURITY FENCING
- SUB-STATION SECURITY FENCING
- PRISON SECURITY FENCING
- FACTORY MACHINE GUARDS
- BRIDGE ANTI-CLIMB GUARDING & GUARD SAFETY SCREENING

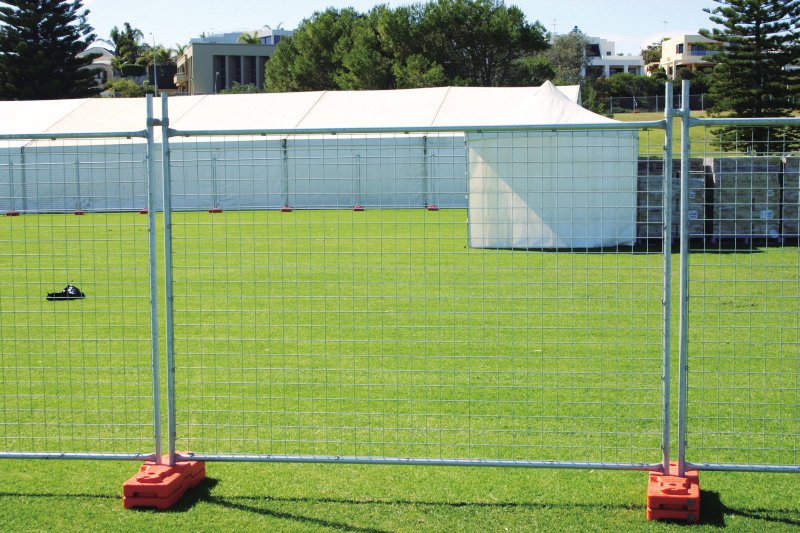

TEMPORARY FENCE
DESCRIPTION:
THE MAIN FENCE PANEL IS HOT-DIP GALVANIZED OR PLASTIC COATED AFTER WELDING. WHEN USING, WE JUST COMBINE THE FENCE PANEL WITH FENCE FEET. IT IS EASY TO INSTALL, AND ITS STRUCTURE IS SOLID.

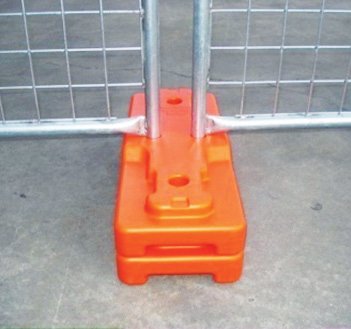

PLASTIC CONCRETE FEET:
THE PLASTIC BOX IS FILLED WITH CONCRETE TO MAKE SURE MORE STABLE. THEY ARE EASIER TO SEE WHICH MAKES THEM SAFER AS THEY ARE LESS LIKELY TO BE A TRIPPING HAZARD FOR THE PUBLIC. THE COMMON SIZE IS 570MM×245MM×130MM(L×W×H).
SIZE:

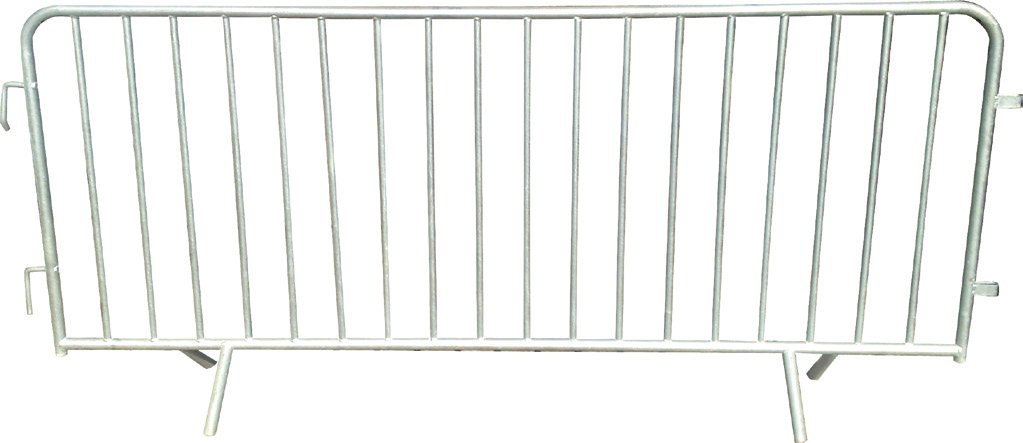

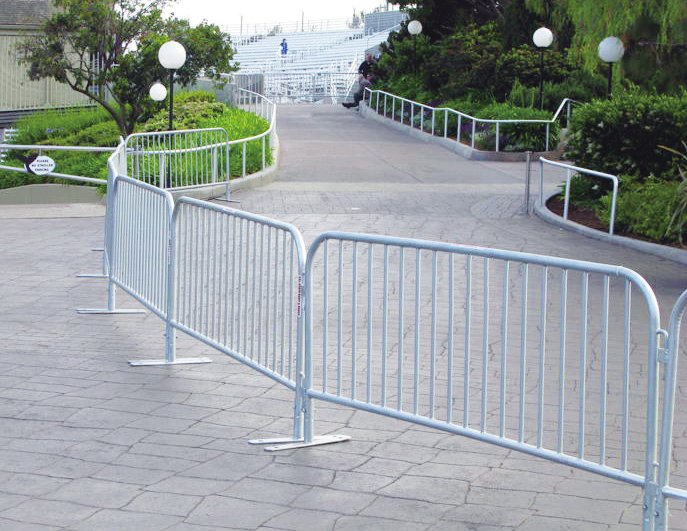

- PEDESTRIAN BAR BARRIER 2.5MTR
- FINISH: HOT-DIPPED GALVANIZED OR POWDER COATED
- BAR SPECIFICATION: VERTICAL BARS QUANTITY:19
- APERTURE: 110MM
- DIAMETER: 10MM
- PANEL WEIGHT: 19KG
