Chain Link Fence Machine
length is manufactured.
The machine is controlled by PLC automatic controller, so only one
person is needed to operate it.
One side or both sides of the end of net hole is twisted or with burr
in edge.
We can product all kinds of chain link fence machines. Here are the details:
Chain link fence machine for manufacturing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sizes. After passing from the die, the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.
|
|
This machine is to produce chain link fence mesh using either galvanized wire or pvc coated wire materials. Its production output is about twice as much of the standard model . It can produce both standard and compacted rolls by the adjustment in the coiling speed.
For more information, please contact us. Please provide the specifications of the chain link fence mesh you want to produce.
Twin worm, double spirals |

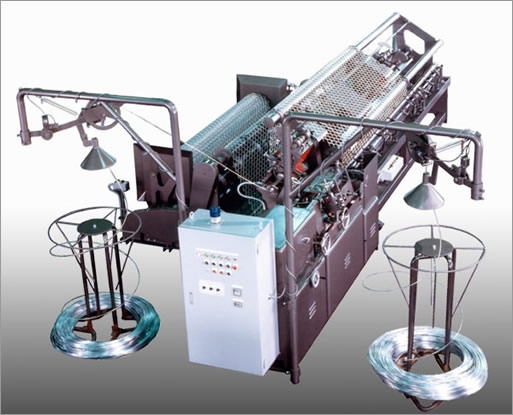

Chain link fence machine |
Control panel |
Specifications
| Width scope of weaving | 1-4 m |
|---|---|
| Diameter of wire | 2-5 mm (depend on the mesh size) |
| Mesh Size | 30-80 mm |
| Speed of the axle of shaped knife | 275-1100 rpm (variable speed) |
| Total Power of equipment | 11kW |
| The output per minute | If the mesh is 50*50mm, width: 2m, the output will be:≥1m/1min. |
| Suitable wire to the machine | The tensile scope of the wire 300-500N/M 2 |
| Weight of equipment | 4200 kg |
| Outside size | 6700*1430*1800 mm |
